Evoclear E600 Media Filter

Designed to cope with the cyclic pressures of the modern day swimming pool, Evoclear E Series filter vessels are precision injection moulded for superior strength and dependability. E Series filters are ideal for pools equipped with in floor cleaning systems and high powered pumps.

Features

• Superior Strength.
• Suitable for sand, glass and other media.
• Corrosion and UV Resistant.
• Ultra-quiet Operation.
• Precision injection moulded filter vessel with minimal tolerances for enhanced structural strength and integrity.
• Pressure rated at 350kPa, ideal for pools equipped with in floor cleaning systems and high powered pumps.
• Hydraulically balanced flow distribution, maximises filtration and backwashing efficiencies and delivers water savings.
• Filter tank and multi-port valve produced with durable UV and corrosion resistant materials.
• Six position multi-port valve with ergonomic handle for ease of use and comfort.
• Large clear sight glass for easy backwash inspection.
• Quality oil filled pressure gauge to accurately determine the filter’s capacity.
• Multi-port valve clamp allows for 360° orientation of valve for simple installation and service.
• Large filter base for stable floor mounting.
• Automatic air bleed prevents the build-up of any air in the filter.
• Provided with robust ABS barrel unions for simple installation.

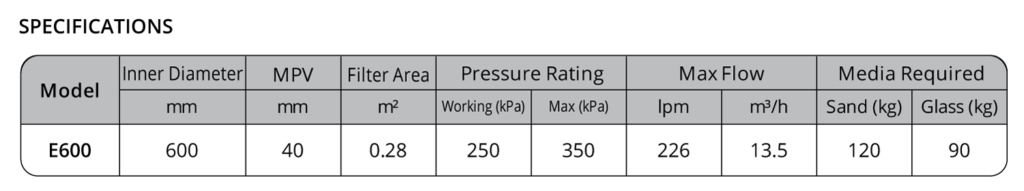

Specifications

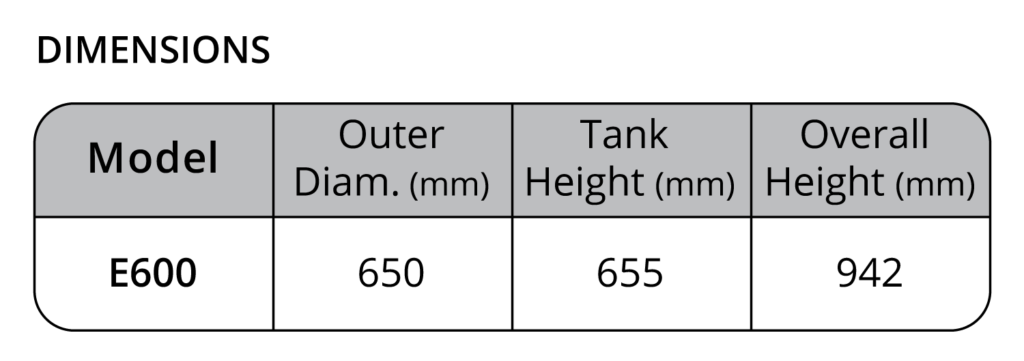

Dimensions

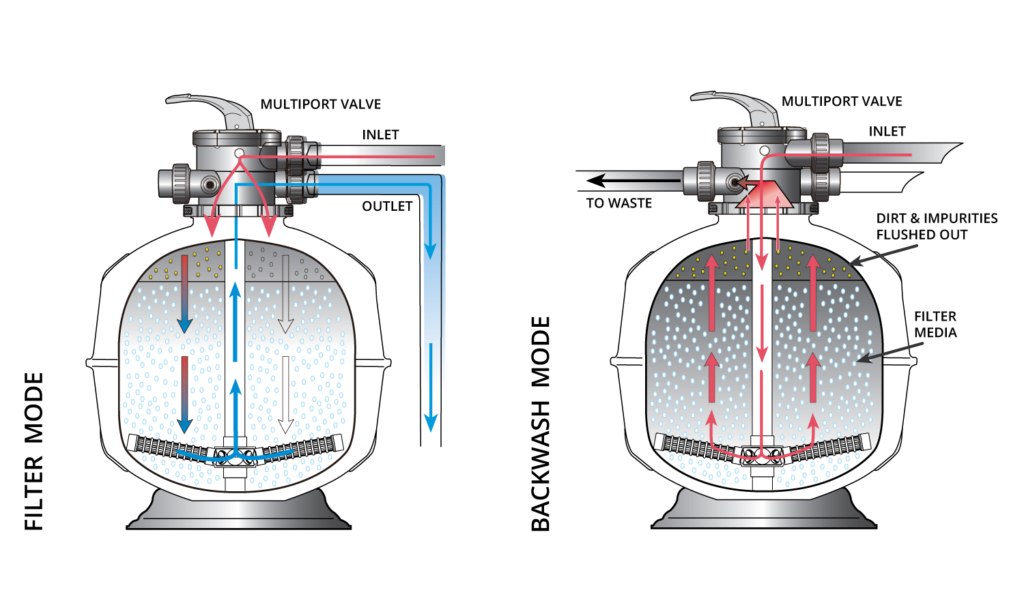

Filtration Modes

Downloads

Brochure Manual
